Introduction of Welding Consumable for Weather Proof Steel
2020-06-29
Introduction of Welding Consumable for Weather Proof Steel
A、Structure of Weather Proof Steel
There are several advantages of weather proof steel: producing process environment-friendly, low cost of maintain, long life cycle, etc. The consumption around the world is increasing gradually with years. Gintune catches up with the weather proof trend around the world and develops the stick electrode, flux-cored wire, MIG wire, submerged wire and flux for weather proof with Gr. 490MPa and 550 MPa. They can be used for bridge, vehicle, container and etc.
B、JINGLEI WELDING——Welding Consumable for Weather Proof Steel

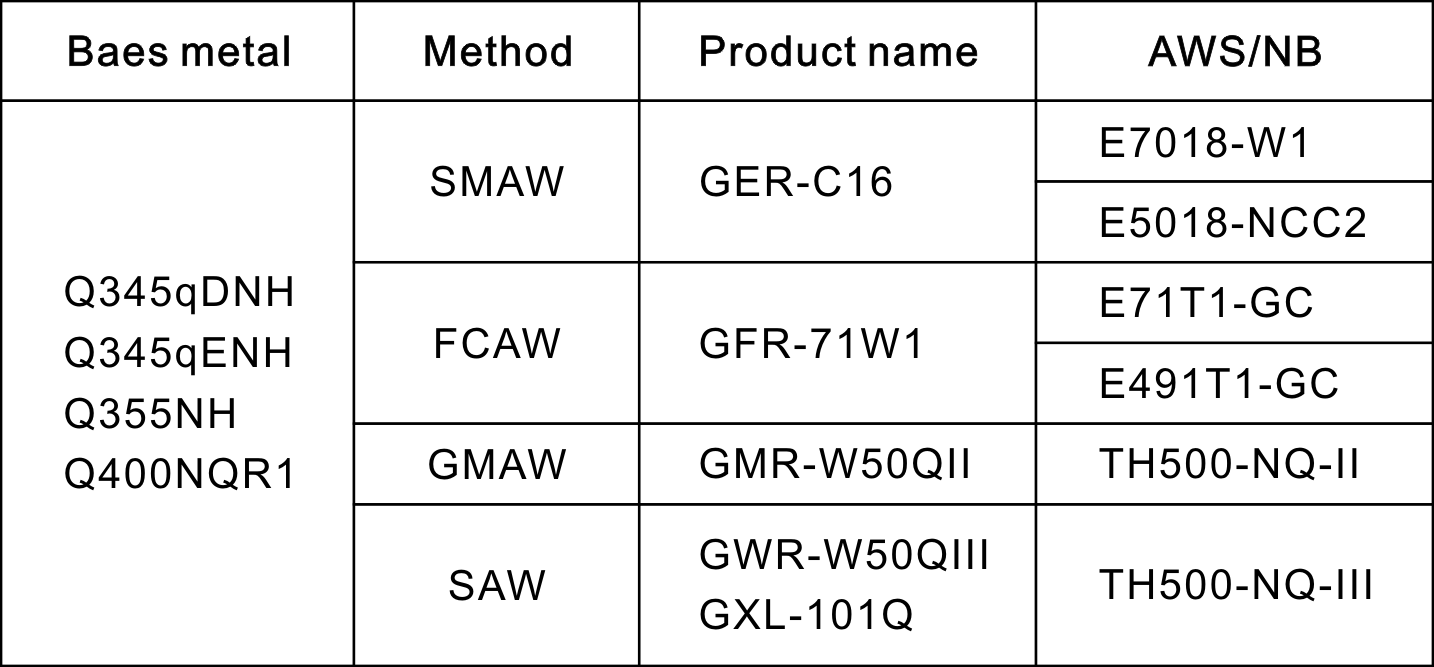

Gr. 490MPa
Gr. 550MPa
C、Typical Data of Chemical Composition and Mechanical Properties of GFR-71W1
D、Applications

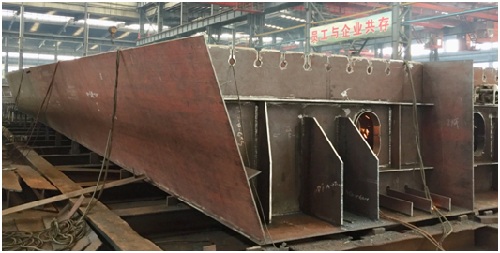

1、Steel Structure of Bridge without paint coating
Base metal：Q345qDNH
Chosen Jinglei’s products：
Stick electrode: GER-C16、
Flux-cored wire: GFR-71W1、
Copper free MIG wire: GMR-W50QII、
Copper free submerged wire and flux: GWR-W50QIII andGXL-101Q
2、Gr. 70 ton C70 type General Wagon
Base metal：Q450NQR1
Chosen Jinglei’s products：
Copper free MIG wire: GMR-W55QII、
Copper free submerged wire and flux: GWR-W55QIIIand GXL-101Q
